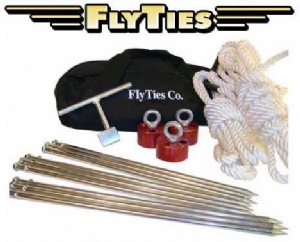

FlyTies® unique design allows quick insertion and quick removal using the easy-out extraction tool provided. Rugged, die-cast steel rods are 3/8" x 14" for deeper penetration into subsoil. Cumulative load capacity is 3,600 lbs. Kit includes 3 ea. aluminum hubs, 9 ea. steel rods, 3 ea. 3/8" x 10 ' ropes, easy-out removal tool, and rugged compact canvas tote bag. Complete kit weighs only 6 lbs. (less than 1 gal of Avgas) and has a lifetime warranty.
FEATURES
- Easy to assemble
- Self cleaning action
- Use in most unpaved surfaces
- Long ropes for even the highest general aviation wings
- Heavy duty canvas tote bag
- Corrosion resistant
- Weighs only 6 lbs.
- Lifetime warranty
BENEFITS
|
Dedication to
Aviation Business
|
Designed by pilots-for pilots. In business for 9 years with its sole purpose being to perfect tie down stake technology.
|
|
Ease of Removal from Ground |
Special extraction tool (provided) that allows quick and easy "straight out” removal. No side loading. Little effort exerted on operator even in hard soils.
|
|
Safety |
Small footprint. Small surface area on the ground. (less than 3” in dia.) |
|
Length of Stakes |
14 inches |
|
Type of Steel |
Each stake is die-cast steel. High tinsel strength. Higher resistance to bending than heat treated or cold roll process. |
|
Eyebolt |
1 1/4 inch structural forged steel eyebolt with 5/16 inch shank. Rated for 1500 lbs. |
|
Rope |
Three strand polyester. Non-moisture absorbent. #1 recommendation by Aviation Consumer for rope of choice for pilots. |
|
Hub |
Strong, impact resistant, lightweight aluminum. Same material used on the space shuttle. Also, hockey pucks. |
|
Ground Holding Area |
By design, rods are directed down and OUTward to reach out to the maximum ground area possible. |
|
Weight |
Only 6 lbs. (Less than one gallon of Avgas) |
SPECIFICATIONS
- 3 ea. aluminum hubs w/ forged steel eyebolt
- 9 ea. 3/8" dia. x 14" steel stakes
- 1 ea. extractor tool
- 1 ea. heavy duty canvas tote bag
- 1 ea. set of instructions
- 3 ea. polypropelyne ropes
