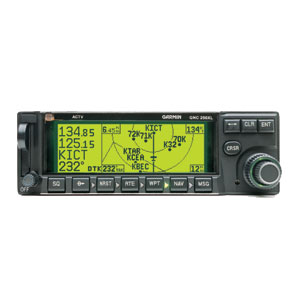

The GNC 250XL delivers picture perfect GPS/comm technology and outstanding reliability. This VFR panel mount combines GPS navigation with a TSO-certified 760-channel transceiver and high resolution DSTN moving map display. The GNC 250XL shares the popular features of the GNC 300XL TSO at a lower price for the VFR pilot.
View Graphics in Sharp Detail
Graphics appear in crisp detail on GNC 250 XL’s 80 x 240 pixel display — jagged lines disappear and smooth arcs and crisp alphanumeric characters prevail. For optimum viewing, a built-in photocell reads the light level and adjusts the display automatically from black-on-yellow to yellow-on-black for nighttime viewing.
Enhance Situational Awareness
Receive your choice of Americas or Atlantic or Pacific coverage from a huge Jeppesen® database. Like other Garmin panel-mount units, GNC 250XL features front-loading data cartridges, so you can make data updates without removing the unit from the rack.
Save Space with Built-in Comm
The GNC 250XL also delivers clear communication from its 760-channel VHF transceiver. Comm features include auto squelch control, instant standby and emergency channel select, and frequencies transfer from the database.
GNC 250XL: GPS/comm technology in a space-saving unit
Physical & Performance: |
| Unit dimensions, WxHxD: |
6.25"W x 2.0"H x 5.8"D (15.9 x 5.1 x 14.7 cm) |
| Display size, WxH: |
4.1"W x 1.3"H (10.4 x 3.3 cm) |
| Display resolution, WxH: |
240 x 80 pixels |
| Display type: |
DSTN transflective with reverse video |
| Weight: |
3.24 lb (1.5 kg) |
| Voltage range: |
10-15.1 |
| Built-in VHF Comm: |
yes, 25 kHz channel spacing |
| Transmit power: |
5 watts minimum |
| Built-in VOR/Loc/Glideslope: |
no |
| Receiver: |
12 channel |
| IFR or VFR: |
|
Maps, Databases & Memory: |
| Basemap: |
no |
| U.S. Terrain and Obstacles database: |
no |
| Jeppesen® database: |
yes |
| Types of Jeppesen databases: |
full |
| Jeppesen database coverage areas: |
Americas or International |
| Waypoints/favorites/locations: |
1,000 |
| Flight plans: |
20 reversible; up to 31 waypoints each |
Features: |
| Fly WAAS approaches: |
no |
| Moving map: |
yes |
| Front-loading datacards (conveniently update database information): |
yes |
| XM WX Weather & Radio for U.S. compatible: |
no |
| Traffic Information Services (TIS) alerts compatible: |
no |
| Class B TAWs alerting compatible: |
no |
