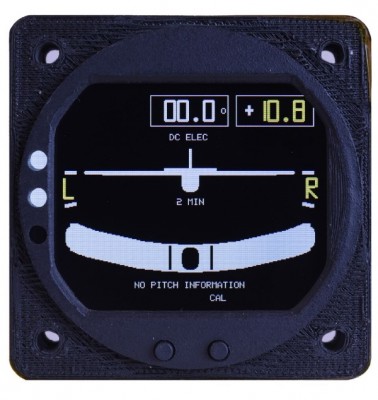

RADIANT TURN COORDINATOR 10-32 VDC

The RADIANT Turn Coordinator provides a visual indication of turn rate along with a visual indication of slip / skid, utilizing an ultra bright, daylight readable color LCD display.

In comparison to all other Turn Coordinators, this unit also provides a digital indication of degrees per second in the turn.

Any pilot who has ever wanted to add a turn coordinator to an experimental aircraft panel has been put off by the complexity, weight, reliability, and price of traditional electric or vacuum units. This product solves all these problems. It utilizes a solid state gyro and accelerometer; it weighs less than 2 ounces, it attaches to any aircraft ship power system, and it allows for easy in flight calibration at the push of a button.

The unit graphic design looks exactly like existing turn coordinators, so there is no learning curve for the pilot.

Also, unlike some products, the unit's gyro will stabilize even if brought to power under aircraft upset conditions.

This is the first avionic product from Belite which is also compatible with 28V aircraft electrical systems. The internal power regulator has been designed to withstand transients to 60 volts.

Belite’s RADIANT instrument line combines many functions into simple, small, lightweight units. The instruments utilize sunlight readable full color high contrast LCD screens which are also friendly with sunglasses.

This instrument shows inclinometer and turn rate.

All instruments are designed for a standard 2.25” cutout, and use approximately 100milliamps of power from a supply of 8 volts. All instruments are dimmable.
