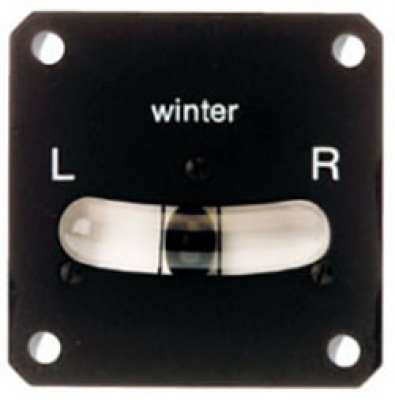

Q: What is the size of the Winter rectangular slip/bank indicator 10-03857?
It is 2-1/2" wide, 1-3/8" high and 1/2" deep.
Q: Is the rectangular model a surface mount or does it require a hole in the panel?
It does require a rectangular cut (not a surface mount).
Q: Are the Winter Slip Indicators Liquid dampened?
The Winter Slip Indicators are filled with liquid.
Q: What is the size part number 10-03857 Can it be panel mounted Thank you Dan carley
The drawing has been posted to the overview tab for this part. Please see attached document.
Q: Is either instrument approved for certified aircraft, tsod?
No, the Winter slip indicators are intended for use in experimental aircraft only.
Q: Can the liquid in the Winter Slip Indicators freeze at low temperature and crack open the slip indicator?
This is a kerosene based liquid with a very low freezing point.
Q: Are these winter slip indicators FAA Approved?
No, these Winter slip indicators do not have FAA Approval.
