Q: Does buying quatity 1 for Barry engine mounts, result in one single mount or one complete set of 4 individual mounts being shipped (4 are obviously required to mount a single engine)?

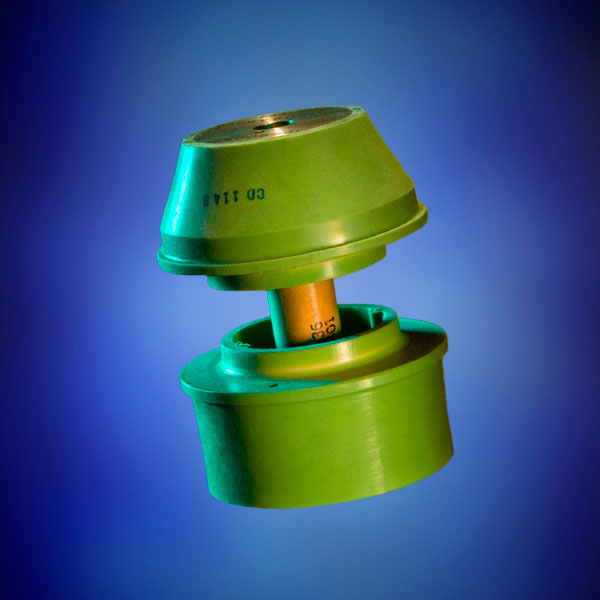

Qty 1 mount is a single mount assembly, two halfs and a spacer. Qty 4 assy's are required for a complete installation.
Q: Do the Barry Engine mounts come with new bolts and washers for mounting?
No. They will only include the bushing. All mounting hardware needs to be purchased separately.
Q: Are the mounts sold as single side or as pairs? (940011-20). Would I need 4 or 8 for typical conical mount install?
They are sold in pairs. The photo shown is how they will ship. Generally you will need for standard install.
Q: To be clear, these are sold as one position per price, and for a 4 mount engine I would have to purchase 4 of them correct?
Yes, that is correct.
Q: Are the Barry Mounts shipped with certificates like FAA8130 dual use or EASA Form 1?
No, this mount is FAA PMA approved and will come stamped with that approval. If you require an 8130-3 form, you will need to request it in the shopping cart at checkout. Additional charges will apply.
Q: For a Cessna TR182, I would need four mounts, means I need to order two(2) 94011-02, correct?
4 mounts would be required. Each mount has two halves for each mounting point.
Q: Do the mounts for the Cessna 152 also fit the Cessna 150?
150's have a different engine and require Lord J-3608-1 mounts.
Q: Could you please let me know the dia of 94110-01?
Approx 2.66".
Q: On your site, Barry mounts only require one part number mount 94011-02 (4 total) for the Piper Cherokee 140 up thru Warriors, even big Cherokees, where Piper and Lord list 2 different part number mounts, J-9613-40 and J-9613-53, 4 total. You show none of the 94011-02 mounts in stock. Can you find out please if the Barry info is correct? I dont see how it could be.
We recommend looking at the full application guide under the documents tab on our website. It really depends on the aircraft model and serial number as to which mounts or combination of mounts is correct for your aircraft.
Q: What is the Barry equivalent to Lord J7402-24?
This would be P/N# 94150-01.
