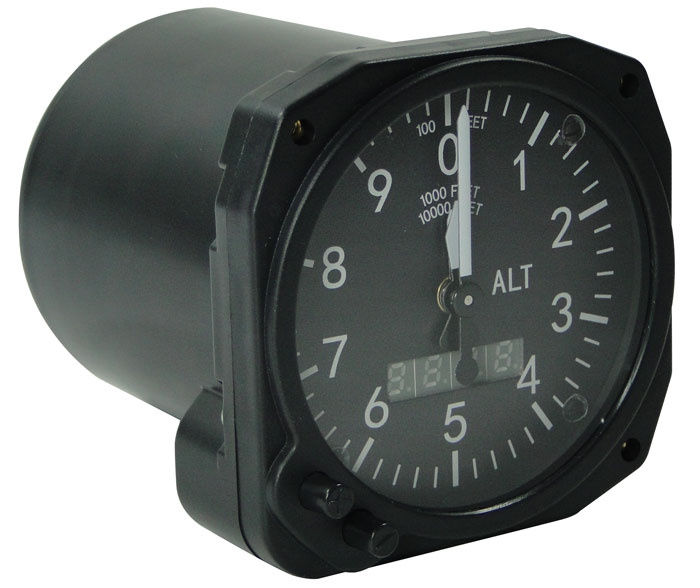

SWIFT 3-1/8" ALT 0-10K FT 2 POINTER BARO MMHG INHG MB

ALT3-10F2 .5kg
AUD$660.00
Stock 1



Patent product, Integrates the highly reliable MEMS sensor Precise, Durable, Accurate (reading), free from frequent regular calibration.

  • Large measurement range: up to 13,000 m (42,000 ft);
  • Barometric unit can be switched between mmHg/inHg/mb;
  • Precise indication: long pointer rotation a circle represents 100 meters in a 3 pointers 10000m model;
  • Easy adjustment: adjust barometric pressure via button instead of knob, simple and straightforward;
  • Digital-displayed barometric pressure with big and clear digits and adjustable lightness;
  • Error can be corrected: no need to be returned to the manufacturer or checked with a specific instrument. After years, when the pressure-sensitive component in the indicator appears small drift, the indication error can be corrected;
  • Super simplified variety and specification, thanks to features including high precision, large range via the sensor and switchable barometric unit.

Specifications

  • Size: 3 1/8"
  • Install Depth: 96mm
  • Power Supply: 9~30VDC
  • Weight: 400 g

Documents

addthis

Three pointer Altimeter features a barometric window enable the pilot to adjust the altimeter to the barometric conditions existing at the point of landing . This type is available in 20,000 ft, which can be ordered with window reading inches of mercury or millibars.

Model: ALT20MBF-3N
Range: 20,000 ft., milbars
Size: 3 1/8"
Weight: 1.4 lbs. or 592g





  • Model: ALT20MBF-3N
  • Range: 20,000 ft., milbars
  • Size: 3 1/8"
  • Weight: 1.4 lbs. or 592g
