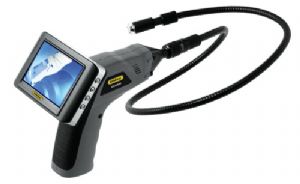

WIRELESS VIDEO INSPECTION SYSTEM DCS400 12MM PROBE

12-02298
AUD$300.00
Stock 0

The Seeker 400 Video Borescope System is ideal for use in Plumbing, Construction and Restoration, HVAC/R and any other application requiring the inspection of hard-to-reach or hard-to-see areas.

addthis

  • 12mm (0.47 in.) diameter probe, 1m (3.28 ft.) long, flexible obedient and waterproof to IP67 standards
  • 3.5 in.(88.9mm) diagonal TFT-LCD Wireless Color Monitor can be detached from the unit for remote viewing up to 32 ft.(10m) away
  • 4x zoom feature
  • 180° image flip feature
  • Both monitor and handle use rechargeable “li-ion” batteries which can be charged at the same time using the included one–into-two charging cable
  • System comes complete with batteries and charger
  • Two adjustable LED lights inside the tip of the probe illuminate dark spaces for clear inspection
  • View results in real-time, record video and capture/save still photos (JPEG), up to 3 hours of video (AVI)
  • NTSC or PAL compatible
  • USB and video interconnect cables are included
  • Built-in magnets and stand facilitate hands-free operation
  • Choice of 5 menu languages: English, French, Spanish, Chinese and Portuguese
  • Comes with 45º mirror, magnetic pick-up and pick-up hook accessories for probe tip

Download the DCS400 manual in PDF.

SPECIFICATIONS

  • Transmission Range: Up to 10m (32.8ft.) clear field
  • Transmission Frequency: 2.4GHz
  • Resolution: 320 x 240 Pixels (NTSC) 704 x 576 pixels (PAL)
  • Depth of Field (DOF): 30 to 100mm (1.2 to 3.94 in.)
  • Field of View: 60°
  • Camera Tipped Probe: 12mm (.47 in.) diameter, also available in 9mm diameter and 5.5mm diameter
  • Probe Length: Standard 1m (3.28 ft.)
  • Optional 12mm Probe Extensions: 1m, 2m, 3m (3.3 ft., 6.6 ft., 9.9 ft.)
  • Dimensions: 215 x 165 x 50mm (8.5 x 6.5 x 1.9 in.)
  • Weight: 425g (15 oz.)
  • Power Source: 1 “li-ion” rechargeable battery (included)
  • Monitor Display: 3.5 in. (88.9mm) diagonal TFT LCD Color Screen
  • Monitor Resolution: 320 x 240 Pixels
  • Monitor Video/Image Resolution: 320 x 240 Pixels (AVI)
  • Monitor Dimensions: 100 x 85 x 25mm (3.9 x 3.3 x 1.0 in.)
  • Monitor Weight: 172g (6.1 oz.)
  • Monitor Power Source: 1 “li-ion” rechargeable battery
  • Monitor CE/FCC Approvals: Yes

IN THE BOX

  • Custom Hard Case
  • Pistol Grip Camera Handle
  • 12mm Diameter, 1m (3.3 ft.) Long Flexible-Obedient Probe
  • Detachable, Wireless Monitor
  • 2GB Micro SD Memory Card
  • 3 Accessory Tools: (45° Mirror, Magnetic Pick-Up, Pick-Up Hook)
  • USB and Video Interconnect Cables
  • Built-in Magnets
  • 2 “li-ion” Rechargeable Batteries with AC Adapter/Charger
  • Instruction Manual
  • Three Year Limited Warranty
