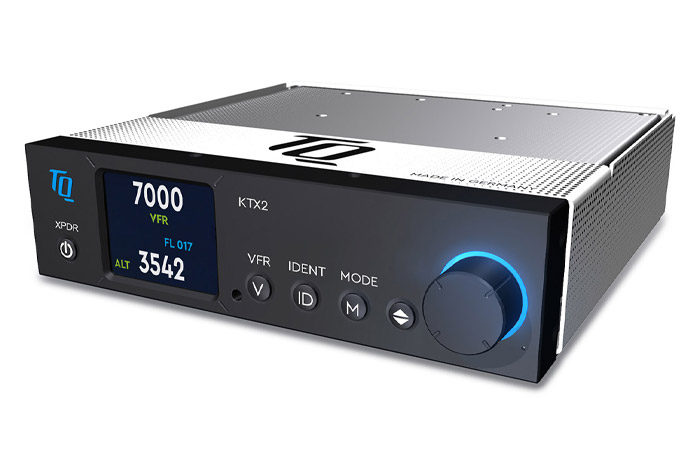

TQ-Aviation KTX2-F V2

TQ-Aviation KTX2-F V2

Our PriceAUD$3,890.00
Code304124.0100


Mode-S Transponder (160mm Stack Format)

The TQ-KTX2-F Mode-S transponder for the standard 160mm stack is one of the most modern transponders on the market. Low weight, compact dimensions, low power consumption are made possible by the highly digitized technology.

A brilliant transflective color display, suitable for direct sunlight use, ADS-B out 2020 Mandate compatibility and intuitive operation result in an unbeatable price-performance ratio. The KTX2's exclusive loop-through antenna eliminates the need to install a second antenna for any ADS-B in hardware.



FEATURES
  • ADS-B out FAA 2020 mandate compliant
  • Transflective color display
  • Suitable for direct sunlight
  • Optional plug-and-play Adapter for Bendix-King KTxx connection
  • Lightweight
  • Minimal power consumption
  • Antenna loop-through
  • ETSO, TSO, FCC approval
  • Digital technology

General data/basic data

  • Weight: approx. 610 g
  • Dimensions: 155.8 x 41 x 158.4 mm

Technical data

  • Type: Mode-S Transponder Class 1 Level 2els
  • Operating voltage: 9 - 33 V DC
  • Transmission power: ? 24 dBW (250 W)
  • Transmission frequency: 1.090 ± 1 MHz
  • Operating temperature: -20°C ... +55°C
  • Shock: 6 g operation, 20 g break resistance
  • Max. Operating height: 30.000 ft
  • Max. Speed: 250 kt / 463 km/h / 287 mph
  • Power consumption: 0.2 - 1.0 A (depending on the number of queries)

Certificates

  • Approvals: EASA ETSO / FAA TSO, FCC
  • Concord: ETSO-C112d, ETSO-C88a / TSO-C112d, TSO-C88a, EUROCAE ED-26, EUROCAE ED-14F, EUROCAE ED-12C; EUROCAE ED-73E, RTCA DO-181E, ETSO-C166b / TSO-C166b (ADS-B out); Software: RTCA DO-178C / ED12C Level D; Hardware: RTCA DO-254 / ED80 Level C
  • Environment: RTCA DO-160G / ED-14G
