Aviation Radio KRT2-P

Aviation Radio KRT2-P

Our PriceAUD$1,995.00
CodeKRT2-P

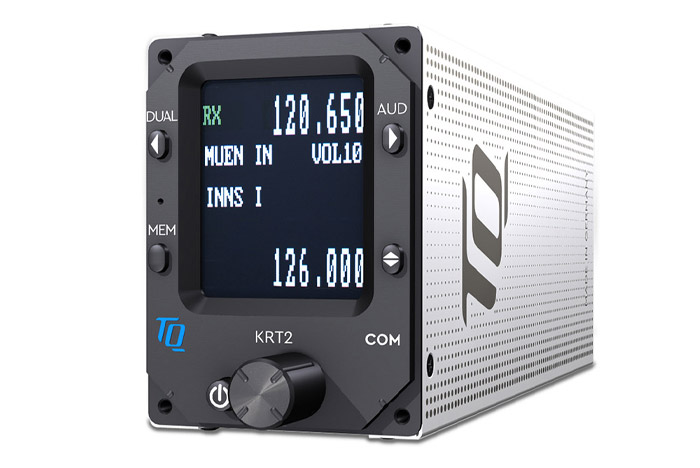

Aviation radio KRT2-P Mini Portrait

KRT2 Radio

  • TFT colour display
  • suitable for sunlight
  • super compact
  • lightweight
  • minimal power consumption
  • Integrated 2-place-Intercom, voice controlled
  • ETSO, TSO, FCC approval
  • Digital technology


The TQ-KRT2-P Mini Portrait aviation radio is one of the most modern aircraft radios on the market.
Lowest weight, most compact dimensions, lowest power consumption are made possible by the highly digitized technology.

A brilliant TFT colour display suitable for sunlight, an integrated voice-controlled intercom and intuitive operation result in an unbeatable price-performance ratio.
General data/basic data

Channels:
  • 2278
Weight:
  • Portrait: approx. 350 g
Speaker output:
  • ?10 W at 4 ?
Dimensions:
  • Portrait: 146.2 x 46 x 63 mm

Technical data

Type:
  • 8,33 / 25 kHz VHF-Radio Transceiver
Frequency range:
  • 117.975 - 137.000 MHz
Frequency accuracy:
  • ±5 ppm
Operating voltage:
  • 9 - 30 V DC
Power consumption:
  •  0.2 - 1.0 A (depending on the number of queries) Send: 17 - 30 W (depending on the respective modulation) Standby: 1 - 1.4 W (depending on display brightness setting)
Transmission power:
  • 6 W @ ? 13.5 V
Operating temperature:
  • -20°C ... +55°C
Max. Operating height:
  • 35.000 ft
Certificates

Approvals:
  • EASA.21O.10038036; FCC
Concord:
  • ETSO-2C169a / TSO-C169a
  • Sender: EUROCAE ED-23C Class 4, 6, RTCA DO-186B Class 4, 6
  • Receiver: EUROCAE ED-23C Class C-D-E-H1/2, RTCA DO-186B Class C-D-E
  • Environment: RTCA DO-160F / ED14F
  • Software: RTCA DO-178C / ED12C Level D

OEM
Avionics workshops
Aircraft importers/Manufacturersdiscountsavailable-
email
orders@skyshop.com.au for pricing

Downloads
