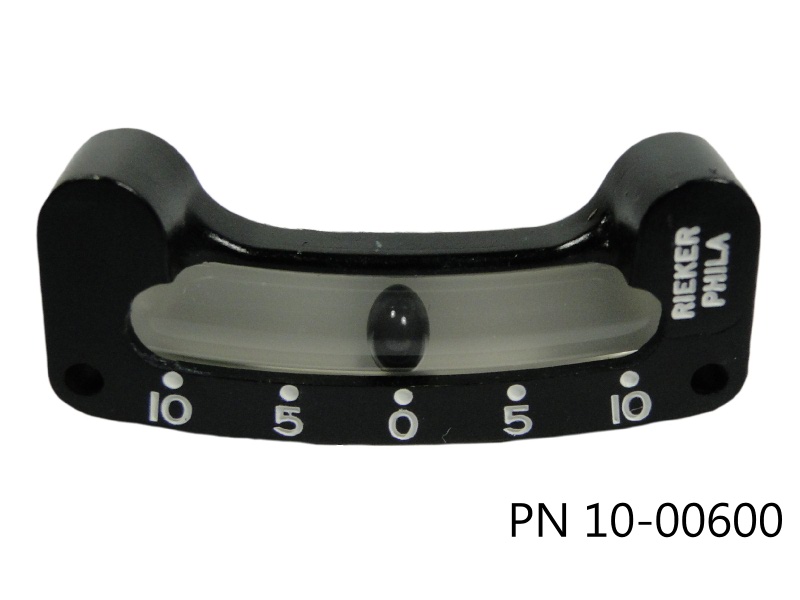

SMALL BALL TYPE BANK INDICATOR 2.5 L x 1 W

10-00600
AUD$257.00

Bank indicators show lateral inclination relative to the horizon. In turning, instantly register slightest departure from the correct banking angle. Bank scale has white markings on a black background. New manufacture. Available in 2 models.

Approximate dimensions:
10-00600 = 2.5" L x 1" W
10-00700 = 5.5" W x 1.5" L

addthis

Part No. 10-00600

  • Dimensions: 2-9/16"w X 1-1/8"h X 1/2"d
  • Degree Range: ±10°
  • Degree Markings: 5°
  • Case Materials: Black painted aluminum, engraved markings filled white
  • Tube Construction: Glass with black ball on white background

Q: How does 10-00700 & 10-00600 bank indicators mount to the panel?

On the ends of both of these indicators is a mounting hole to mount to the panel.

Q: Will this Bank Indicator fit on RC Allen electrical attitude indicators?

This is not designed for RC Allen instruments. We recommend ordering the RC bank indicator option.

Q: What material are the inclinometers made of?

Case Materials: Black painted aluminum, engraved markings filled white.

Q: Will this product fit on a AI King KI 256?

This product is intended to fit underneath a gauge and not on top of a gauge using the same mounting holes.

Q: Can you please tell me what the screw hole spacings are on these two inclinometers?

Part number 10-00600 is 2.25" and 10-00700 is 5" center of hole to hole.

Q: Are these Ball Type Bank Indicators FAA PMA approved for use certified aircraft?

The small bank indicator, 10-00600, does have FAA-PMA approval.

Q: For these simple ball type bank indicators it references Mfg Part# to be 1040 and 1023. I assume 1040 = Spruce P/N 10-00600 but need to be sure. Please confirm.

Yes, 10-00600 is mfg no. 1040.

Q: Can the either or both be mounted upside down to coordinate inverted turns?

No, these cannot be installed upside down.
