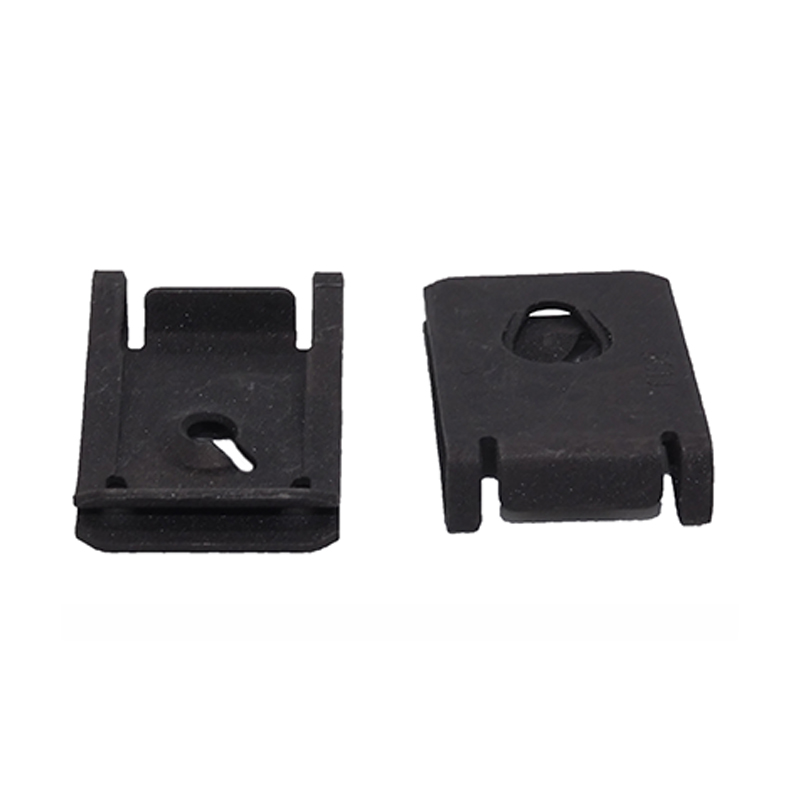

U TYPE TINNERMAN STYLE 239192001 pack of 25

04-00366
AUD$11.25
Stock 1

U TYPE TINNERMAN STYLE 239192001 pack of 25



Snaps over edge of panels or into center hole locations. Holds itself in place for blind assembly. "Floats" free for easy hole alignment.

Specification Chart

Instructions

HOW TO APPLY SPEED NUT FASTENERS
FLAT TYPE "U" TYPE

Fastener is positioned over screw clearance hole with screw-engaging prongs pointing up or outward. Screw is started into nut by hand from the underside.

Push into position with thumb until extrusion on lower leg snaps into screw hole. The fastener "floats" in screw-receiving position to correct for normal misalignment in panel mounting holes.


Screw can be power-driven into locked position (when base arch of fastener is flat) or a hand screw driver can be used. No wrench is required, finger pressure will prevent it from turning.

Place second panel in position and drive screw. Access to opposite side is unnecessary. Flush mounting can be made by embossing either panel.
