Q: How much does this Sky-Tec Starter solenoid weigh?
Without packaging, solenoid by itself weighs approx 1 lbs.The solenoid weighs 1.2 lbs with packaging.
Q: I am replacing the original starter on my 1967 Cessna 150G with a Skytec kit Kcst2. Which Skytec solenoid should I order?
For a 12V system see part number 07-03562. For a 24V system see part number 07-03563.
Q: Why is this Sky-Tec starter solenoid intermittent?
Starter solenoids / relays are intermittent, and Master solenoids / relays are continuous.

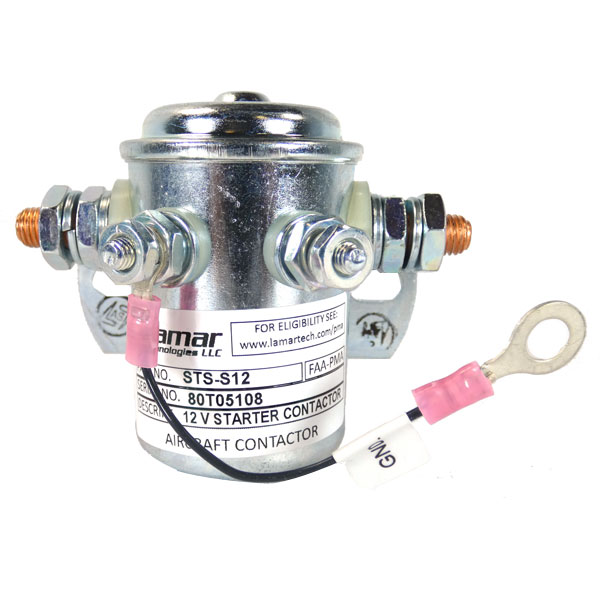

Q: What size are the terminal studs on STS-S12 starter solenoid?
5/16" on the main studs and there is a small stud that is 3/16".
Q: What is the distance between mounting holes?
2-1/4" hole center to hole center.
Q: Does this solenoid have an internal diode? The solenoid that I am replacing looks like it has a diode in the wire that goes from the S terminal to the mounting bolt.
There is no internal diode. These do not need a diode to function properly, but we always recommend hooking the new contactor up the exact way the old one was connected.
Q: What is the mount bolt torque?
Per the manufacturer: We do not have a torque spec for the mounting bolts. You would just tighten the bolts down to fully secure the unit.
