FALCON VERTICAL CARD COMPASS 12V LIT SOUTH HEM W/ MOUNT

10-04490
AUD$686.25

Note: These compasses are not FAA Approved and are intended for experimental aircraft use only.

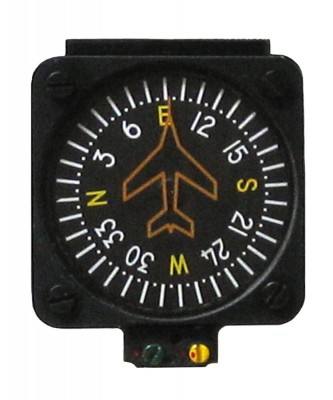

The Falcon Vertical Card compass is a non-liquid type compass. It is designed using a new concept which eliminates leaking. With a 2" vertical dial which is compared to a miniature airplane to present the magnetic heading of the aircraft at all times, heading information is more natural and easy to read presentation and see the complete 360º dial. 90º±5 vertical mount.

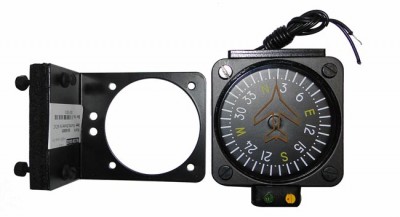

Can be purchased with or without mounting bracket, with or without 12VDC Lighting, and in Northern or Southern hemisphere orientation. Made in China

MODEL

APPLICATION

DESCRIPTION

PN
MCVC-2L-A Northern

Lighted 12V DC, 90º±5 Vertical Mount

 10-05276
MCVC-2L-A-M Northern

Lighted 12V DC, 90º±5 Vertical Mount With Mounting Bracket

 10-04174

MCVC-25-A

Southern

Without Light, 90º±5 Vertical Mount

10-05824

MCVC-25-A-M

Southern

Without Light, 90º±5 Vertical Mount with Mounting Bracket

10-05825
MCVC-2SL-A Southern

Lighted 12V DC, 90º±5 Vertical Mount

 10-04489
MCVC-2SL-A-M Southern

Lighted 12V DC, 90º±5 Vertical Mount with Mounting Bracket

 10-04490

MCVC-2A

Northern

Without Light, 90º±5 Vertical Mount

10-05826

MCVC-2A-M

Northern

Without Light, 90º±5 Vertical Mount with Mounting Bracket

10-05828

addthis

Q: Does this Falcon Vertical Card Compass require 12V to operate or 12V for lighting?

Yes, 12V for lighting.

Q: What's the weight of this Vertical Card Compass ?

It is about 0.60 pounds.

Q: Can the Falcon Vertical Compass be panel mounted?

Yes

Q: Will I need to cage the Falcon vertical card compasses during aerobatics?

Per Falcon, you cannot cage their vertical card compasses.

Q: Will the Falcon Vertical Card Compass fit on the same bracket as the Precision Vertical Card Compass Pai-700?

The Falcon vertical card compass is the same size and has the same dimensions as the Precision Vertical Card Compass Pai-700.

Q: Are these Falcon vertical card compasses FAA TSO approved?

No, all Falcon instruments are intended for experimental aircraft only.

Q: What are the total dimensions of the FALCON VERTICAL CARD COMPASS P/N: 10-04174 when mounted in the bracket?

The total dimensions of the Falcon vertical Card compass with the bracket installed PN: 10-04174 is 2.5in X 3.5in X 2in.

Q: What is the minimal distance from wires that this Falcon Vertical Card compass can be installed?

Suggested 6" away from any electrical equipment.

Q: Can this Falcon Vertical Card Compass be panel mounted?

No, we do not recommend panel mounting this compass as the is to much electrical interference in the panel.
