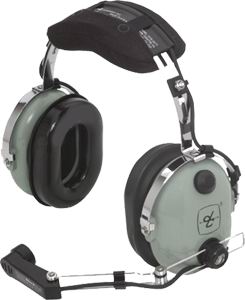

David Clark H10-36 (NSN 5965-01-446-1506)

H10-36 (NSN 5965-01-446-1506)

STANDARD noise-attenuating headset. Passive - General Aviation. The helicopter version of the H10-30. Comes equiped with a 6' coil cord and a single plug.


Super Soft Head Pad
New Comfort gel, undercut ear seals
Our "Best Value" Headset
More H10-30s are in use than any other noise attenuating headset
M-1/DC microphone, the best Amplified Dynamic microphone on the market
Molded cord assembly made to exceptional pull and flex standards
5-year Guarantee
FAA TSO Approved C57 Cat. B and C58a
Exceeds RTCA/DO-214 Standards
Weight (without cord assembly): 20 oz.

Impedance: Standard
NRR: 24dB

Earphone Type: Dynamic Noise-Canceling Mic: M-1/DCAmplified Dynamic
Earphone Impedance: 150 ohms(300 each; wired in parallel) Mic Impedance: 150 ohms +/- 20%
Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz Mic Sensitivity: 400mV RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input
Earphone Frequency Response: 200-5,500 Hz Mic Freq Response: 300Hz--3.5KHz per RTCA DO 214
Earphone Plug: PJ-055 (.25" phone plug) Mic Plug: PJ-068 (.206" phone plug)
Boom Type: Hinged Wire Cord: 5 ft.Straight
Headpad/Hardware: Super-Soft Headpad Weight/Headset Only: 20 oz.
